Liquid Sensor Thermostatic Radiator Head Energy Saving A Class Trv Head EN215 Certified

Product Categories
Thomas T Intelligent Technology Co., Ltd.
Contact Now

Liquid Sensor Thermostatic Radiator Head Energy Saving A Class Trv Head EN215 Certified

Brand Name : TANGER

Model Number : TMS-01

Certification : EN215

Place of Origin : Wuxi, Jiangsu, China

MOQ : 12,000 pcs

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 1,000,000 pcs/month

Delivery Time : 7-10 working days

Packaging Details : Cartons, pallet

Product Name : Radiator valve head temperature liquid sensor

Application : Radiator, HVAC, Floor/ underfloor heating, Boiler system, Piping system

Type : Floor heating thermostats, Floor/ under floor heating system

Housing Material` : Iron

Standard : EN215 certificate

Warranty : 2 years

Contact Now

EN215 Certified Thermostatic Liquid Sensor TMS-01

Product Description

TMS-01 liquid thermostatic sensors are specially designed for being used in thermostatic radiator valves. The working principle of this valve: The liquid temperature sensing element TMS-01 in the thermostatic valve head can sense the indoor air temperature. Thereby it changes the heating water flow to regulate and control room temperature.

Features

  • Without any auxiliary energy

  • Energy-saving

  • Low hysteresis

  • European standard

  • Thermostatic efficiency label A

  • Priority shipping

  • Thermal expansion and cold contraction

Technical Specifications

Model number TMS-01
Working range 5°C-30 °C with a load of 50N
Extension 0.22±0.1mm/°C
Workload 40/80N
Minimum workload 40N
Maximum workload 120N
Min/max. temperature -25°C to 55 °C
Hysteresis/K <0.12
"X" X=0.95±0.2mm
Total expansion 2.2±0.1mm between 15-25°C with a load of 50N

Overall Dimensions

Liquid Sensor Thermostatic Radiator Head Energy Saving A Class Trv Head EN215 Certified

Section view

Liquid sensors can not work independently and are usually installed in radiator thermostatic valve heads.

Liquid Sensor Thermostatic Radiator Head Energy Saving A Class Trv Head EN215 Certified

Liquid Sensor Thermostatic Radiator Head Energy Saving A Class Trv Head EN215 Certified

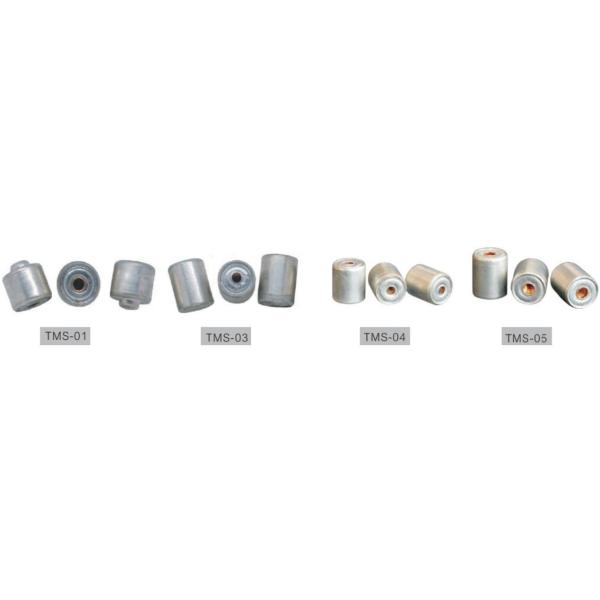

Different types of liquid sensors.

Liquid Sensor Thermostatic Radiator Head Energy Saving A Class Trv Head EN215 Certified

Model

 TMS-01 TMS-03 TMS-04 TMS-05

Area of work

 5°C-30°C 5°C-30°C 5°C-30°C 5°C-30°C

Workload

 40-80N 40-80N 40-80N 40-80N

Min./ Max. load

 40/120N 40/120N 40/120N 40/120N
Min./ Max temperature -25 °Cto 55°C -25 °Cto 55°C -25 °Cto 55°C -25 °Cto 55°C

Hysteresis/ K

 0.12 0.12 0.12 0.12
"X" value

X=0.95±0.2mm with a

load of 50N at 20°C

X=6.5±0.2mm with a

load of 50N at 20°C

 X=6.5±0.2mm with a load of 50N at 20°C

X=6.22±0.35mm with a

load of 50N at 24°C
Total expansion

2.2±0.1mm between

15°-25°C, 50N

2.2±0.11mm between

15°-25°C, 50N

2.2±0.11mm between

15°-25°C, 50N

2.3±0.11mm between

15°-25°C, 50N

The company has a strong production capacity and can provide various liquid sensors 5-8 million every year. Moreover, we can develop more types of thermostatic sensors according to customers' size and technical requirements.

Liquid Sensor Thermostatic Radiator Head Energy Saving A Class Trv Head EN215 Certified

All manufacturing procedures and tests follow the rule of EN215.

Liquid Sensor Thermostatic Radiator Head Energy Saving A Class Trv Head EN215 Certified

FAQ

Q1: Are you a manufacturer or a trader?

A1: We have been a thermostat manufacturer focusing on thermostats and temperature controls in the HVAC market for over 30 years.

Q2: How are your product quality and warranty?

A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period.

Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give?

A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products.

Q4: How long can I get the sample?

A4: Samples are usually ready in 5-20 days based on different types.

Q5: What are the nearest ports of shipment?

A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them.
