3 Way 12v Ball Valve Actuator Electric 10Nm Remote Sensing Element

Name: 3 Way 12v Ball Valve Actuator Electric 10Nm Remote Sensing Element
Brand: TANGER
Price: 1 USD

Wholesale 3 Way 12v Ball Valve Actuator Electric 10Nm Remote Sensing Element from china suppliers

Brand Name : TANGER

Model Number : ZBA230D01

Certification : ISO9001, CE

Place of Origin : Wuxi, Jiangsu, China

MOQ : 200 pcs

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 20,000 pcs/month

Delivery Time : 50-60 working days

Packaging Details : Cartons, pallet

Product Name : Ball Valve Actuator

Application : HVAC controls

Medium : Water an glycol 50%

Motor type : Brushless motor

Type of connector : DN20, DN25, DN32, DN40, DN50

Mechanical movement : Rotary

Configuration : Two-way, three-way

Rotation : 90 degrees

Contact Now

10Nm Ball Valve Actuator with LCD Screen IP54 ZBA230D01

ZBA series elecric actuators are designed to operate ball valves. They are intended for assembly directly on two and three-way ball valves with diameters rom 1/2 to 1 1/4 inch (DN15, DN20, DN25, DN32). They can work with brass valves with a rotation angle of up to 90 degrees.

ZBA series have the ability to manually open or close the ball valve in emergency cases.Thye are available in varous control and power versions, including 230VAC, 12VDC or 23VDC.

3 Way 12v Ball Valve Actuator Electric 10Nm Remote Sensing Element

Lower noise, long life.
Easy operation, simple installation.
Manual adjustable, and power off control can be realized.
Precise valve opening position.
Brushless motor.

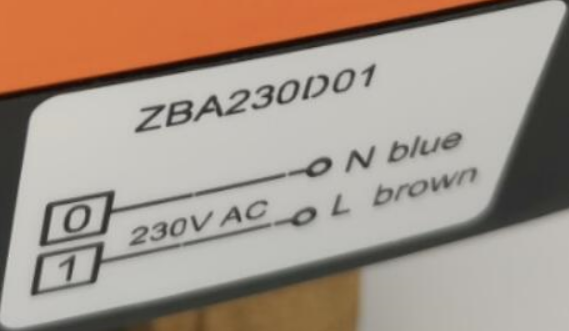

Model number	ZBA230D01
Function	Switching valve
Power supply	230V AC
Power consumption	5W for running, 1W for maintaining
Frequency	50/60Hz
Stroke	90°C/90s
Torque	10Nm
Installation size	M33X1.5
Protection level	IP54

3 Way 12v Ball Valve Actuator Electric 10Nm Remote Sensing Element

Type of valves to be used

Installation type	Model number	Thread	Flow coefficient Kvs	Body pressure MPa	Turn off differential pressure MPa	Medium temperature
Nut	VB30F20A	3/4"	7.3	2.5	0.5	5-100°C
Nut	VB30F25A	1"	8.7	2.5	0.5	5-100°C
Nut	VB30F32A	1 1/4"	11.4	2.5	0.5	5-100°C
Nut	VB30F40A	1 1/2"	14.2	2.5	0.5	5-100°C
Nut	VB30F50A	2"	18.2	2.5	0.5	5-100°C

Installation Guide

Before carrying out maintenance work, the actuator must be disconnected from the power supply (unplug the power cord). At the same time, the water pump and isolation device in the particular part of the relevant pipeline should also be closed (if necessary), it should be cooled first to reduce the system pressure). When the lines are refilled, the system will ony work again if the valves and actuators are properly installed and connected.
